• Vertex Funnel Jet Floating Pond Fountain
  • Vertex FunnelJet Floating Pond Fountain
  • Vertex FunnelJet Floating Pond Fountain
1 3

Vertex

Vertex Funnel Jet Floating Pond Fountain

Vertex Funnel Jet Floating Pond Fountain

$9,480.00 USD
$9,480.00 USD
Sale Sold out
Shipping calculated at checkout.

The Amazing FunnelJet

Discover the enchanting beauty of the FunnelJet floating pond fountain collection—a stunning combination of strength and elegance. Enjoy the breathtaking view of a large, shimmering ring of water, gracefully enhancing your lake or pond. With a sleek design, these fountains maintain clear sightlines while providing a captivating water display. Meticulously engineered, FunnelJet floating lake fountains feature fully waterproof parts and are made from high-quality materials known for their outstanding corrosion resistance. Enjoy years of reliable service and exceptional performance. Each FunnelJet fountain comes with a UL-listed control panel and a durable submersible turbine pump for optimal operation.

Vertex FunnelJet Floating Fountain Series - On Water with Trees at the Background

Features & Advantages

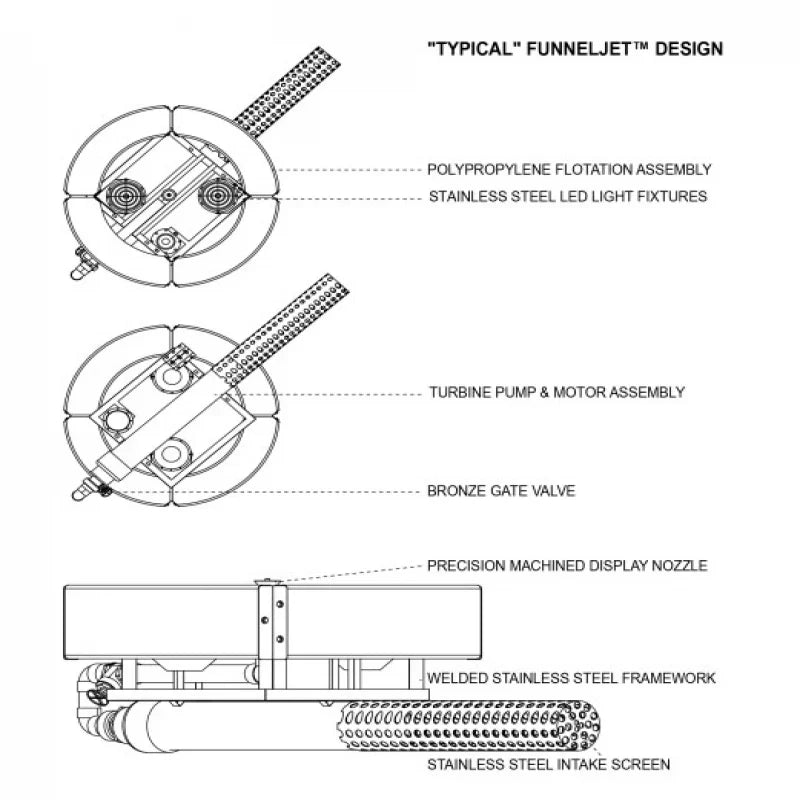

Nozzles

  • Precision-engineered brass/bronze or stainless steel nozzles

Pumps / Motors

  • High-efficiency turbine pump/motor assembly
  • Constructed from stainless steel
  • Water-cooled: no oils, seals, or o-rings to maintain
  • 4-year warranty

Flotation

  • Rotocast polypropylene with UV protection for durability
  • Individual leveling compartments for precise adjustments
  • 4-year warranty

Control Panel

  • UL listed according to National Electrical Code
  • Weather-resistant steel enclosures

Submersible Light Fixtures

  • Energy-efficient LED, 140 lumens/watt
  • Stainless steel casing
  • 2-year warranty

Cables

  • STW-A rated
  • 4-year warranty

Technical Details

Vertex FunnelJet Floating Pond Fountain - Tech Specs


 2 HP Unit
 3 HP Unit 5 HP Unit 7.5 HP Unit 10 HP Unit
Minimum Operating Depth 3' 3' 4'
 5' 6'
Spray Height (A) 6' 7'
 8' 8′ 9′
Diameter (B) 25′ 30′ 35′ 45' 50′
LED Lights 3 3 3 3 3
Total Wattage 86W 86W 86W 86W 86W
AMP Draw 1 1 1 1 1
Available Phase 1 & 3 1 & 3 1 & 3 1 & 3 1 & 3
1 Phase (Volts) 230 230 230 230 230
3 Phase (Volts) 208 or 230 208 or 230 208 or 230 208 or 230 208 or 230
Display Heads Warranty 4-Year
 4-Year 4-Year 4-Year 4-Year
Pumps & Motors Warranty 4-Year 4-Year 4-Year 4-Year 4-Year
LED Lighting Warranty 2-year 2-year 2-year 2-year 2-year
Control Panel Warranty 1-Year 1-Year 1-Year 1-Year 1-Year
