• EcoWave® 15000 Pond Pump
1 2

Aquascape

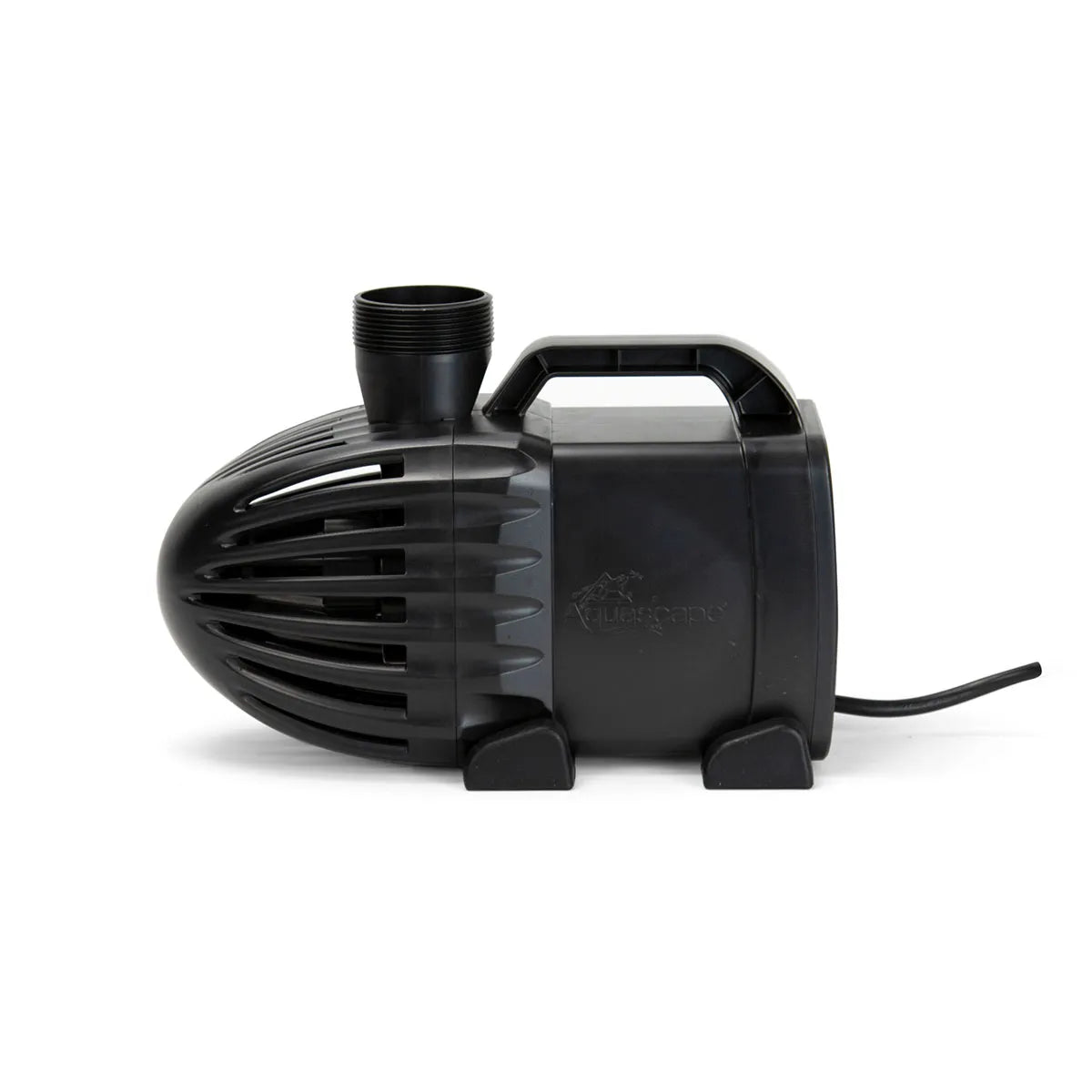

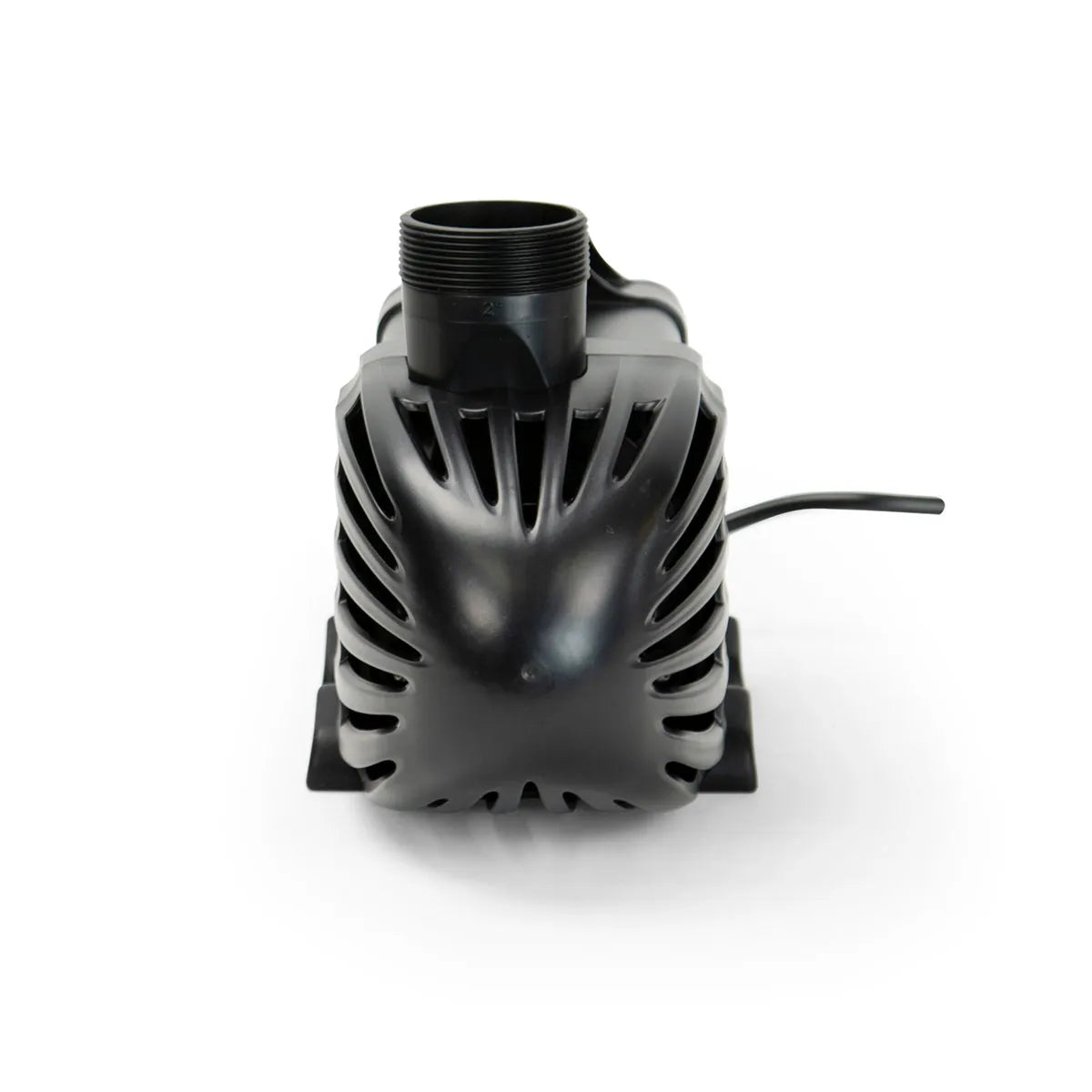

EcoWave® 15000 Pond Pump

EcoWave® 15000 Pond Pump

$324.79 USD
$324.79 USD
Sale Sold out
Shipping calculated at checkout.
This response was truncated. Increase the cut-off limit or choose a model with a larger context window. -------------------------

Aquascape EcoWave® Pond Pumps utilize magnetic drive technology to efficiently deliver high flow rates at low head heights. The innovative smart mag drive motor and vortex impeller design provide exceptional energy efficiency, reducing the power consumption for your pond or waterfall. These pumps are perfect for pond skimmers and Pondless® Waterfall Vault setups.

Additional Information

  • Highly energy-efficient with smart mag-drive technology
  • Perfect for skimmer filters, waterfall vaults, and large fountain basins
  • Designed for continuous operation
  • Comes with fittings for quick and easy installation without tools
  • 3-Year Limited Warranty

EcoWave Pump Flow Chart (LPH)
Model Max Head Height Application Head Height
0 1 2 3 4 5 6 6.5 7 8
8000 4.6 m 7 800 4 700 2 750 1 500 500 0
12000 6 m 11 600 6 950 4 750 3 200 2 000 750 0
15000 6.5 m 15000 10250 7000 4750 3500 2250 600 0
20000 6.4 m 19500 14250 9800 7250 5250 3750 1500 0
25000 7.8 m 25500 19200 15500 11500 8900 6900 4600 2800 0
BEST Operating Zone (LPH)
MAXIMUM Operating Zone (LPH)

Resources

Owner's Manual and Instructions

EcoWave Pond Pumps (91131UK, 91132UK, 91133UK, 91134UK, 91164UK) Size: 1.92 MB

Technical Specifications

8000 12000 15000 20000 25000
Item Number(s) 91131UK 91132UK 91133UK 91134UK 91164UK
Maximum Flow Rate (LPH) 7 800 11 600 15 000 19 500 23 500
Maximum Head Height 4.6 m 6 m 6.5 m 6.4 m 7.8 m
Motor Type Mag-Drive Mag-Drive Mag-Drive Mag-Drive Mag-Drive
Wattage 65 90 130 150 240
Amperage .27 .38 .5 .63 1.0
Power Cord Length 10 m 10 m 10 m 10 m 10 m
Pump Discharge Diameter 2" MPT 2" MPT 2" MPT 2" MPT 2" MPT
Pump Inlet Diameter 1.5" 1.5" 2" 2" 2"
Ideal Pipe Diameter 1.5" - 2" 1.5" - 2" 1.5" - 2" 2" - 3" 2" - 3"
Pump Dimensions (cm) 28 L x 15 W x 19 H 28 L x 15 W x 19 H 28 L x 15 W x 19 H 28 L x 15 W x 19 H 28 L x 15 W x 19 H
Warranty 3-Year Limited 3-Year Limited 3-Year Limited 3-Year Limited 3-Year Limited
Packaged Weight (kg) 4.7 5.2
